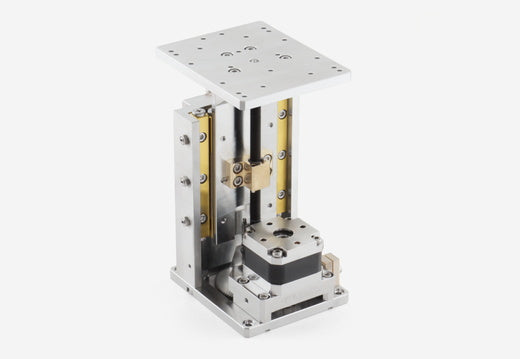

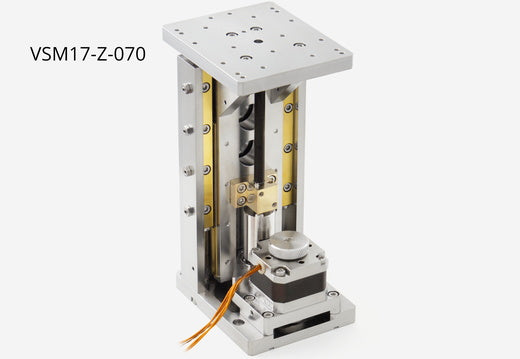

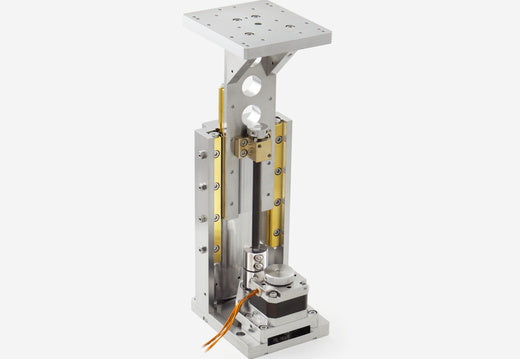

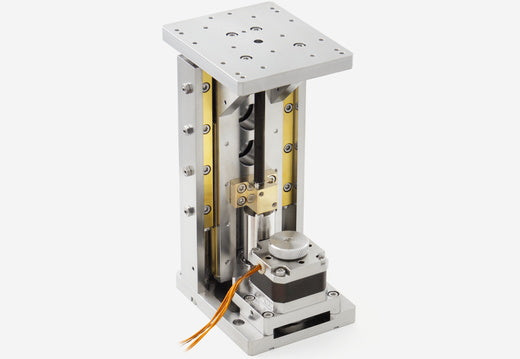

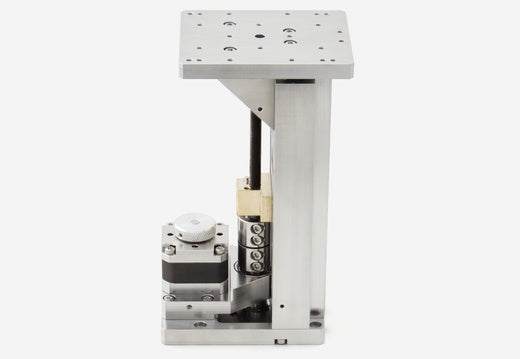

VSM17-Z Translation Stage

Modular UHV Stage for Z-Axis Translation

Linear vertical translation stage suitable for use in UHV. Can support loads of up to several kilograms and travel from 50 mm. Designed specifically for Z-axis translation, the sample table is always above the mechanism across the stage's full range of travel. Suitable for loads up to 30 kg.

Overview

• Standard travels from 50 to 70 mm
• 1 µm resolution
• 30 kg centred load capacity
• Maximum speed of 5 mm/sec
• Designed for Z-axis translation
• Suitable for use to 1 x 10^-10 mBar
• Bakeable to 200 °C
