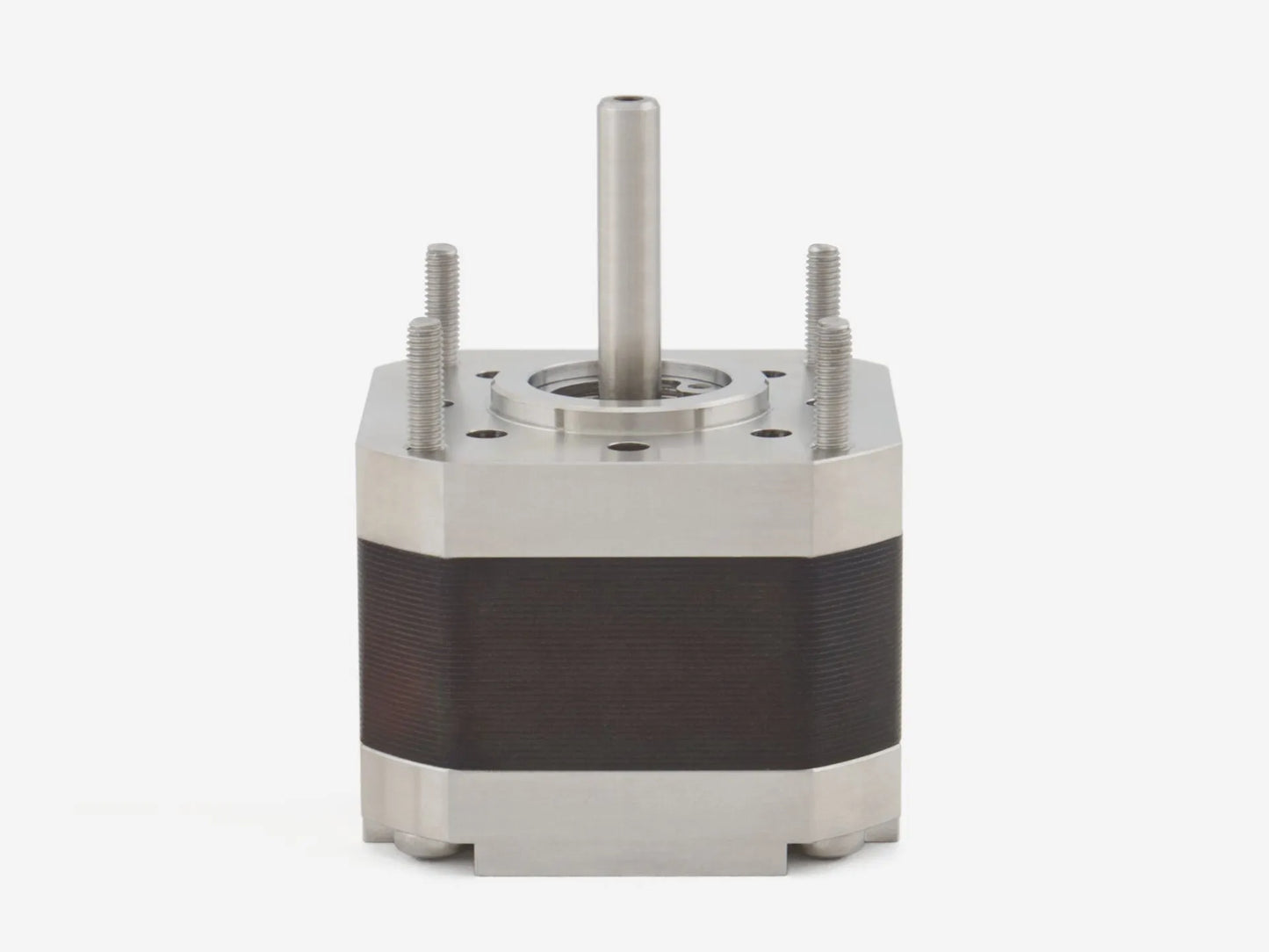

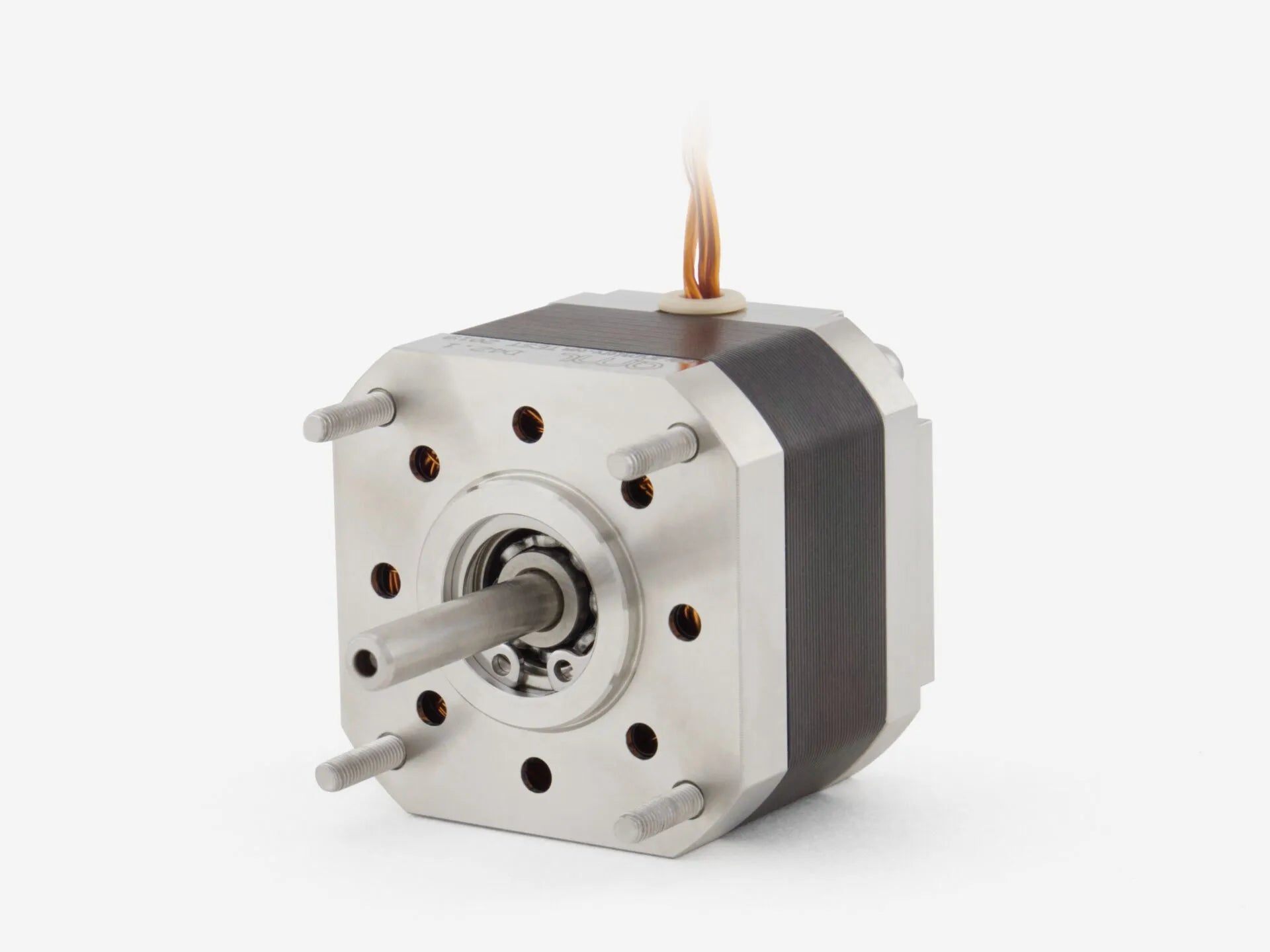

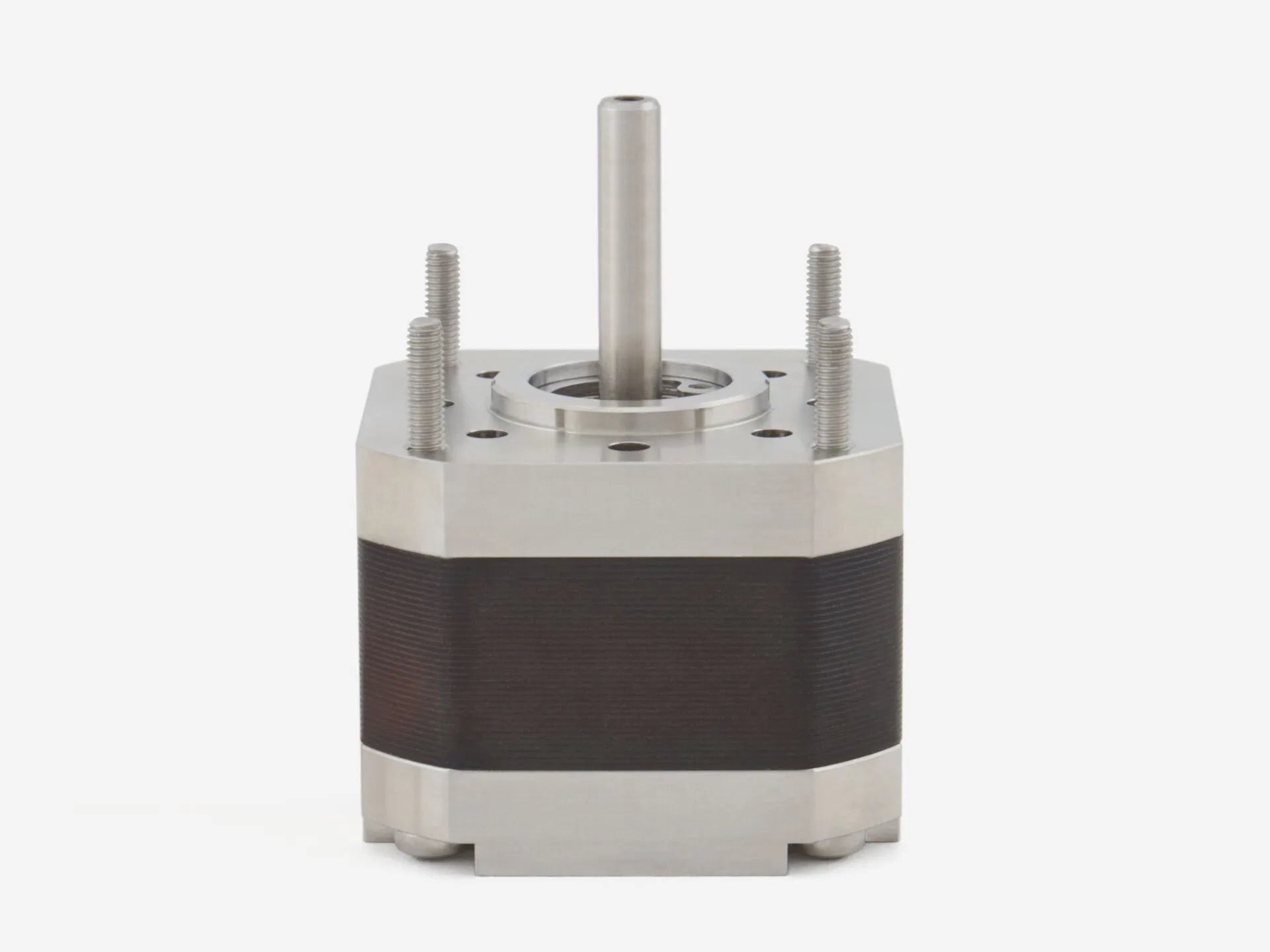

D42.1 UHV Stepper Motor, 250mNm 474

$1,231.46 USD

Sale Sold out

Option D42.1 - Standard D42.1 - C UHV Stepper Motor Cryogenic D42.1 - H UHV Stepper Motor Hybrid Bearings D42.1 - P UHV Stepper Motor PT100 Temperature Sensor D42.1 - R UHV Stepper Motor RAD Hard D42.1 - X UHV Stepper Motor Shaft Modification

Quantity

Overview

Suitable for use below 1 x 10^-10mBar (7.5 x 10^-11 Torr)
Continuous running in vacuum at high torque and step rates with AML drive
Bakeable to 200 °C
Step angle of 1.8°
Step angle tolerance of ±5%
Operational temperature range -65 °C to +190 °C
Open construction with all internal spaces vented
Gamma radiation hard versions available 1 x 10⁶ Gy
Standard motors are fitted with open stainless steel bearings, lubricated with NyeTorr® 6300 ultra low outgassing UHV grease
3-4 weeks ship time. Made to order.

Options:

D42.1 - C Cryogenic extended operating temperature option available, range -196 °C to +190 °C
D42.1- H Hybrid silicone nitride ceramic bearings option available, dry lubricated with tungsten disulfide
D42.1 - P Embedded thermocouple or PT100 sensor
D42.1 - RAD Hard
D42.1 - X Custom shaft modifications available
