D-sub Electrical Feedthroughs

9 and 15-way D-sub Electrical Feedthroughs

From £337.00 excl. VAT and transportation cost

D-sub electrical feedthroughs. 9 or 15-way versions available. Features individual glass-ceramic compression seals and bakeable to 250 °C. UHV compatible D-sub connectors, pins and tooling are available.

Overview

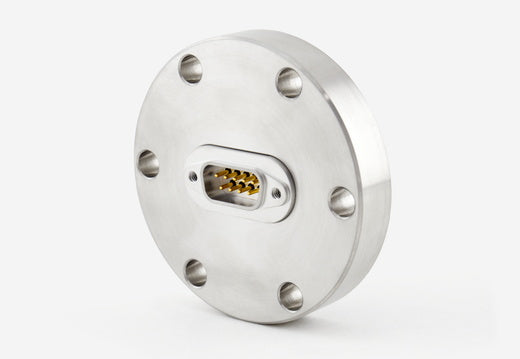

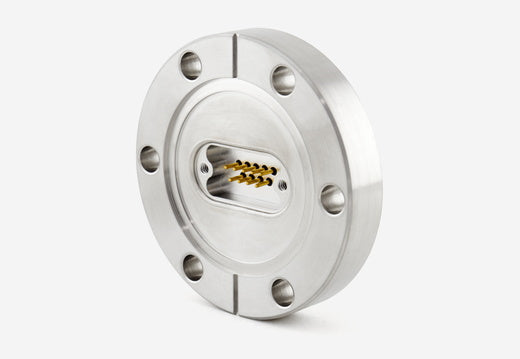

• 9-way feedthrough on a DN40CF flange (70 mm OD)

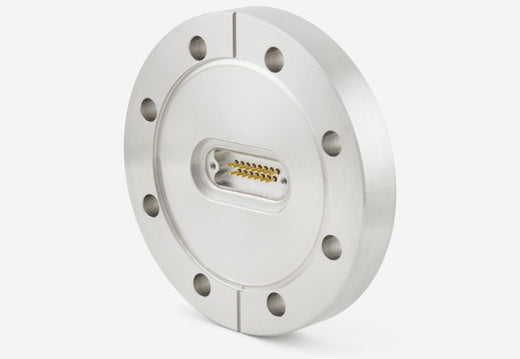

• 15-way feedthrough on a DN63CF flange (114 mm OD)
• Suitable for use to 1.3 x 10^-10 mBar (1 x 10^-10 Torr)
• Male to male connection
• Bakeable to 250°C
• Gold plated pins
• Rating. 500V, 5 A per pin (max 20% of pins)
